Honeycomb Activated Carbon

Offer Best Service for Your Project

HANYAN two-step activation honeycomb activated carbon is a new popular kind of activated carbon, which widely used in various VOCs purification and air filtration systems.

  • Certified by ISO9001 etc. Ensure product quality
  • 3 plants and 2 warehouses to guarantee large quantities
  • High adsorption performance, reduce customer operation costs
ASK FOR QUOTE
honeycomb activated carbon
ASK FOR QUOTE

Main Products Types

honeycomb activated carbon 75

Honeycomb Activated Carbon HYHC-75

  • Raw Material: Coal, wood, cocont shell powder mixture
  • CTC: 70-80%
  • Iodine Value: ≥800mg/g
  • VOCs Adsorption: ≈150kg/m³

Feature: HYHC-75 honeycomb activated carbon with supreme adsorption and desorption capacity, can greatly improve the service life and reduce the cost of hazardous waste.

GET INFO
honeycomb activated carbon 65

Honeycomb Activated Carbon HYHC-65

  • Raw Material: Coal, wood, cocont shell powder mixture
  • CTC: 60-70%
  • Iodine Value: ≥600mg/g
  • VOCs Adsorption: ≈120kg/m³

Feature: HYHC-65 is the high effiency honeycomb activated carbon with excellent adsorption capacity.

GET INFO
honeycomb activated carbon

Honeycomb Activated Carbon HYHC-55

  • Raw Material: Coal, wood, cocont shell powder mixture
  • CTC: 55-60%
  • Iodine Value: ≥500mg/g
  • VOCs Adsorption: ≈80kg/m³

Feature: HYHC-55 is the most cost-effective honeycomb activated carbon, can meet most of customers’ exhaust emission requirements.

GET INFO

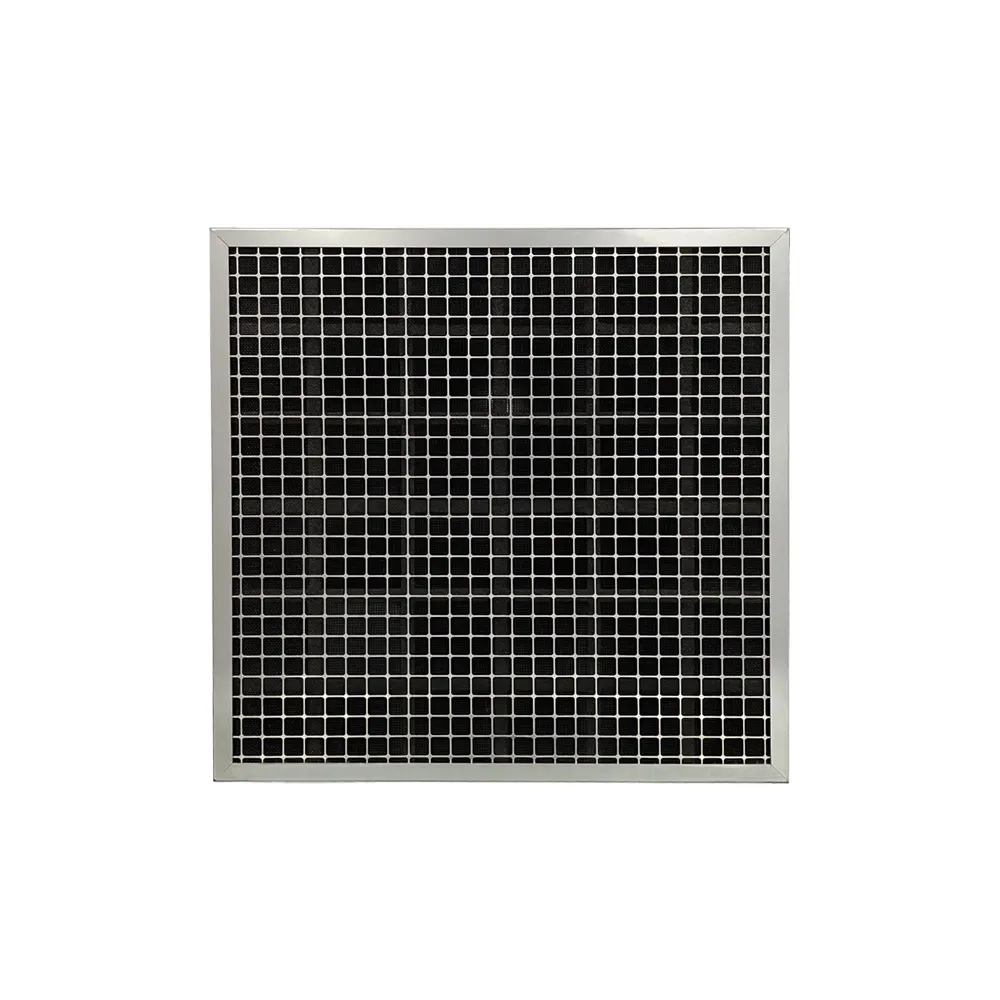

honeycomb activated carbon filter

HANYAN GridFilter

The HANYAN-GridFilter is a gas -phase air filtration media in the form of an extruded monolithic block consisting of a large number of small and uniform parallel cells or channels. With low pressure drop, large contact area and high adsorption capacity, GridFilter is widely used in the purification system of various acid gas, alkaline gas, indoor gas and VOCs substances.

GET INFO

General Specifications & Customized Services

  • Dimension: 100*100*100(±3)mm (More size on request)
  • Hole Size: 100PSI (25/50/150/200/400 is available)
  • Type: No water proof, Water proof, impregnated with certain chemical is available
  • Adsorption Substance: Toluene, xylene, non-methane total hydrocarbons, etc. Painting exhaust gas, VOCs
  • Impregnated kind is available for special gas treatment, such as H2S(hydrogen sulfide), NH3(ammonia), HCHO(formaldehyde), O3(ozone), etc.

Application & Solutions

  • Industry: coating, auto parts, pharmacy, petrochemical, furniture, PE materials, chemical engineering, etc.
  • Air Volume: 1,000 - 100,000 Nm³/h (Large Volume)
  • Concentration: low concentration
  • Component: relatively single component
  • Equipment: widely used in catalytic combustion equipment as adsorbent
VOCs treatment system
catalytic combustion equipment
honeycomb activated carbon catalytic combustion equipment

Packaging and Shipping

  • Packing: 18pcs/carton
  • Package and lable can be customized on clients' request
  • Provide sea, air and truck delivery
  • Sample delivery method: FedEx
  • 20’GP: 72 cartons/pallet, totally 10 pallets, 12960pcs;
  • 40’HQ: 81 cartons/pallet, totally 22 pallets, 32076pcs.
  • honeycomb activated carbon delivery
  • Delivered should be packed with customized wooden case for protection.
  •  plywood case
